When a project calls for dependable pipe and conduit support, the right strut channel makes all the difference. VersaStrut is designed to meet that need across a wide range of applications, pairing a strut profile with a flange base. The result is a single product that adapts to a variety of mounting situations, allowing installers to suit the configuration to the demands of each job.
The defining advantage of VersaStrut is its adaptability. The strut profile accepts clamps and fittings for conduit and other applications, and its performance is rooted in the material itself: PVC blended with 3% CPE for UV resistance and low-temperature performance. This composition delivers a support that resists rust and corrosion and remains light enough to handle and install with ease. It is a practical, low-maintenance alternative to traditional metal strut.
VersaStrut can be put to work in three ways:
- Wall: Attach the flange to a wall to support pipes vertically. The strut profile holds standard clamps and fittings, integrating into your existing conduit and pipe work.
- Ceiling: Fasten the flange overhead to support pipes vertically from above, keeping runs organized and out of the way.
- Rooftop: Set the flange directly on the roof for a low-profile support that holds pipes horizontally.
Practical Applications
VersaStrut handles a remarkable variety of jobs. It is well-suited to PEX repipe projects, where mounted sections route plumbing cleanly along basement walls and help keep expansion lines aligned at their manifolds. Because the clamps can be repositioned along the channel, lining everything up is straightforward, often simpler than working with individual clamps.
VersaStrut is equally effective for electrical installations. Saddle clamps for securing Smurf tubes can be mounted directly to VersaStrut, and because VersaStrut is made of PVC, it is non-conductive, corrosion-resistant, and moisture-resistant. This makes it a safe, durable, and low-maintenance solution for a wide range of electrical applications. Its clean, professional appearance also makes it an attractive alternative to galvanized steel in visible installations, such as offices, commercial spaces, and equipment mounting areas.
VersaStrut also lends itself to no-drill installations, including adhesive-mounted rooftop setups for applications like solar panel supports. Throughout, it stays light, cuts easily to length with a standard miter saw, and offers strength that goes well beyond what PVC typically offers.
Sizes and Specifications

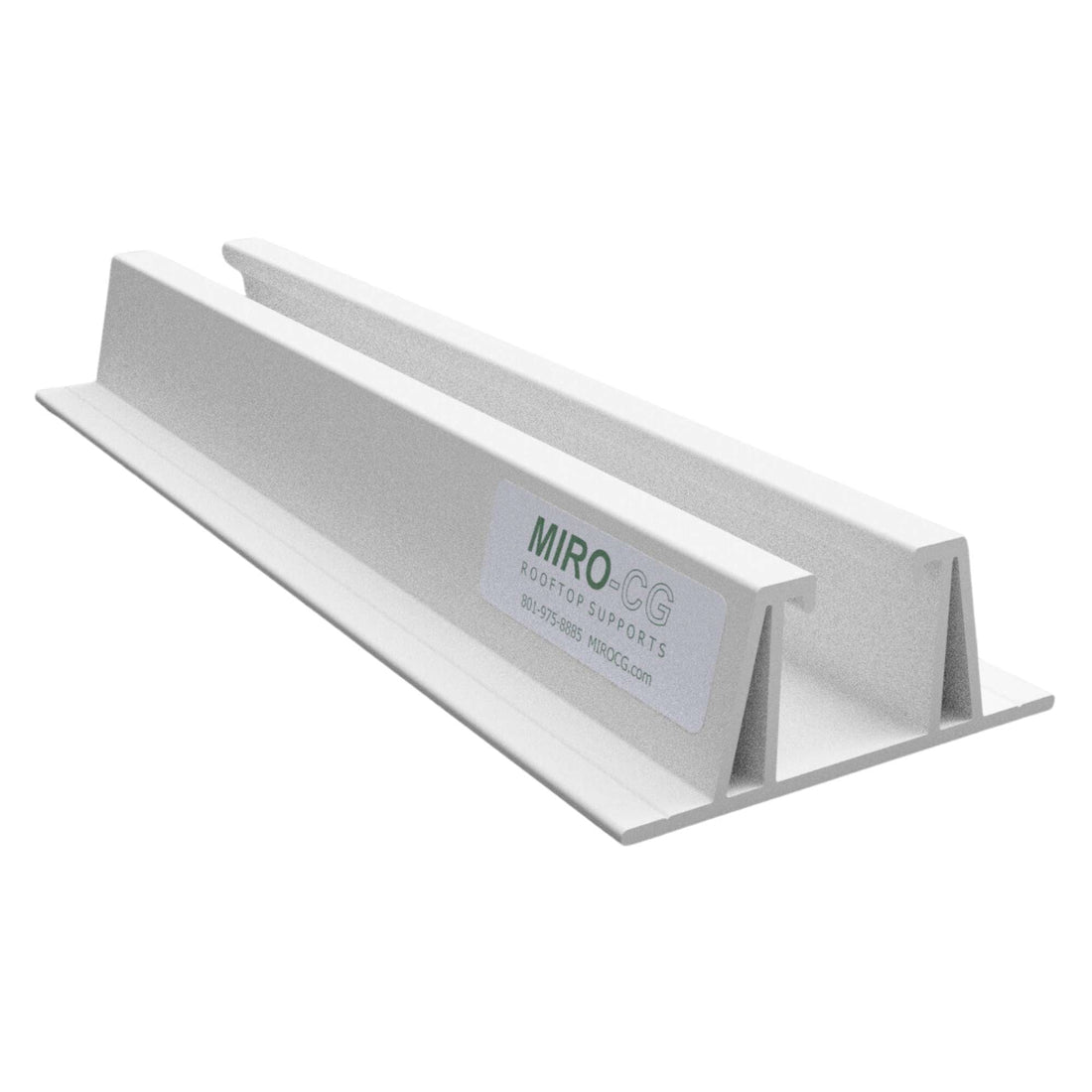

VersaStrut features a 1-5/8" x 1-5/8" strut profile with a 4" flange base, and is offered in 6", 12", and 36" lengths. With a range of stock sizes to choose from, it is simple to find a configuration that fits the job at hand.
Proper spacing and loading help VersaStrut perform at its best. Supports should not exceed 10' on center, and less may be appropriate depending on the weight of the pipe or the pipe manufacturer's recommendations. For rooftop applications, the recommended maximum load to the roof is 3.0 PSI, with support not to exceed 144 lbs per foot of VersaStrut. For wall applications, the recommended maximum load is 50 lbs per foot. To protect performance, avoid overtightening clamps, bolts, or screws applied to the strut profile or flange base.
Every VersaStrut is backed by a 2-year limited warranty, providing added assurance for your installation.
In summary, for a versatile and reliable means of supporting pipe and conduit, whether on a wall, ceiling, or rooftop, VersaStrut delivers. Its practical design and durable construction make it a dependable choice for a broad range of support requirements.
