MIRO-CG Rooftop Supports

COMING SOON: VersaStrut | Strong PVC Channel Strut for Wall, Ceiling, and Rooftop

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Sold out
Shipping calculated at checkout.
Length

COMING SOON: Expected Availability in January 2025

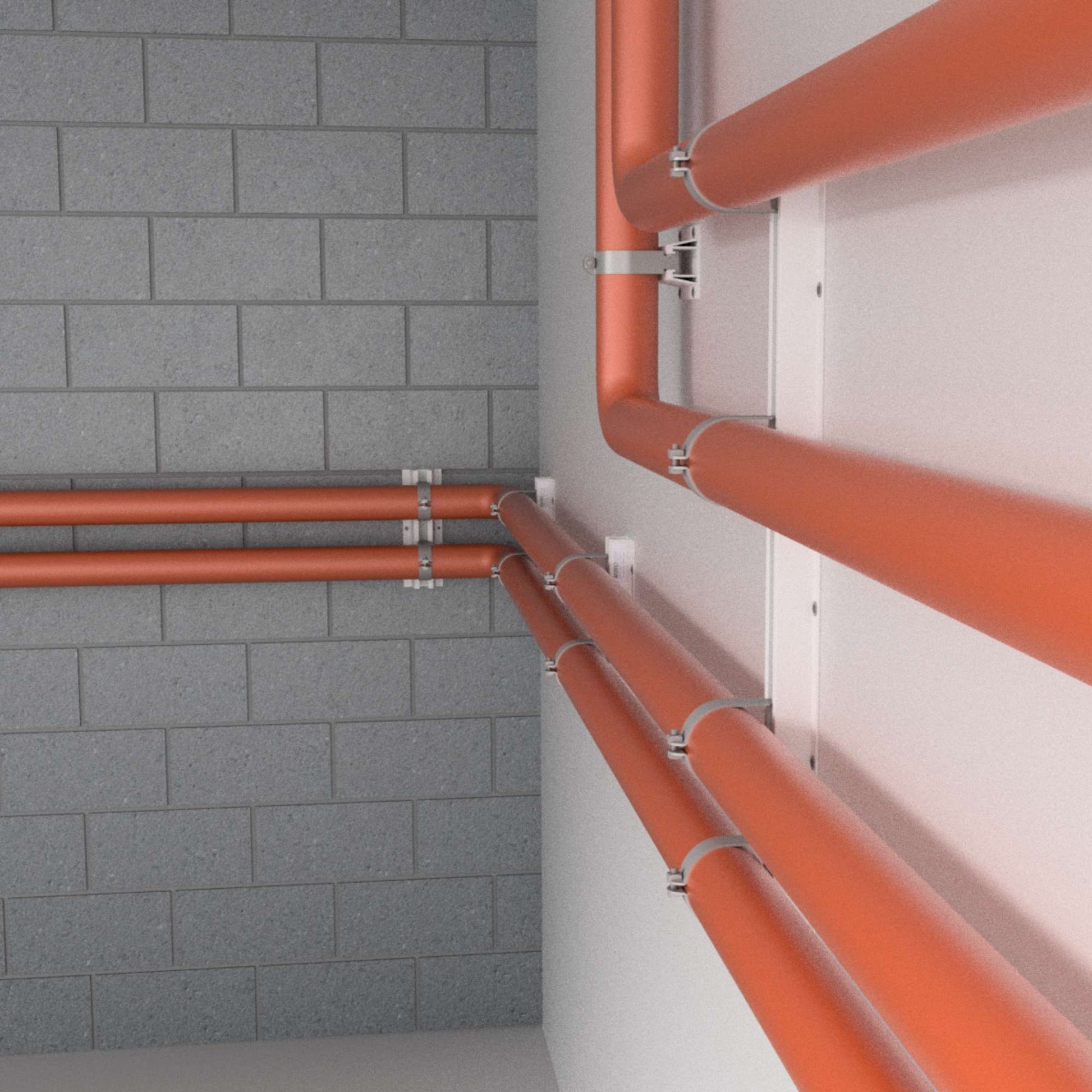

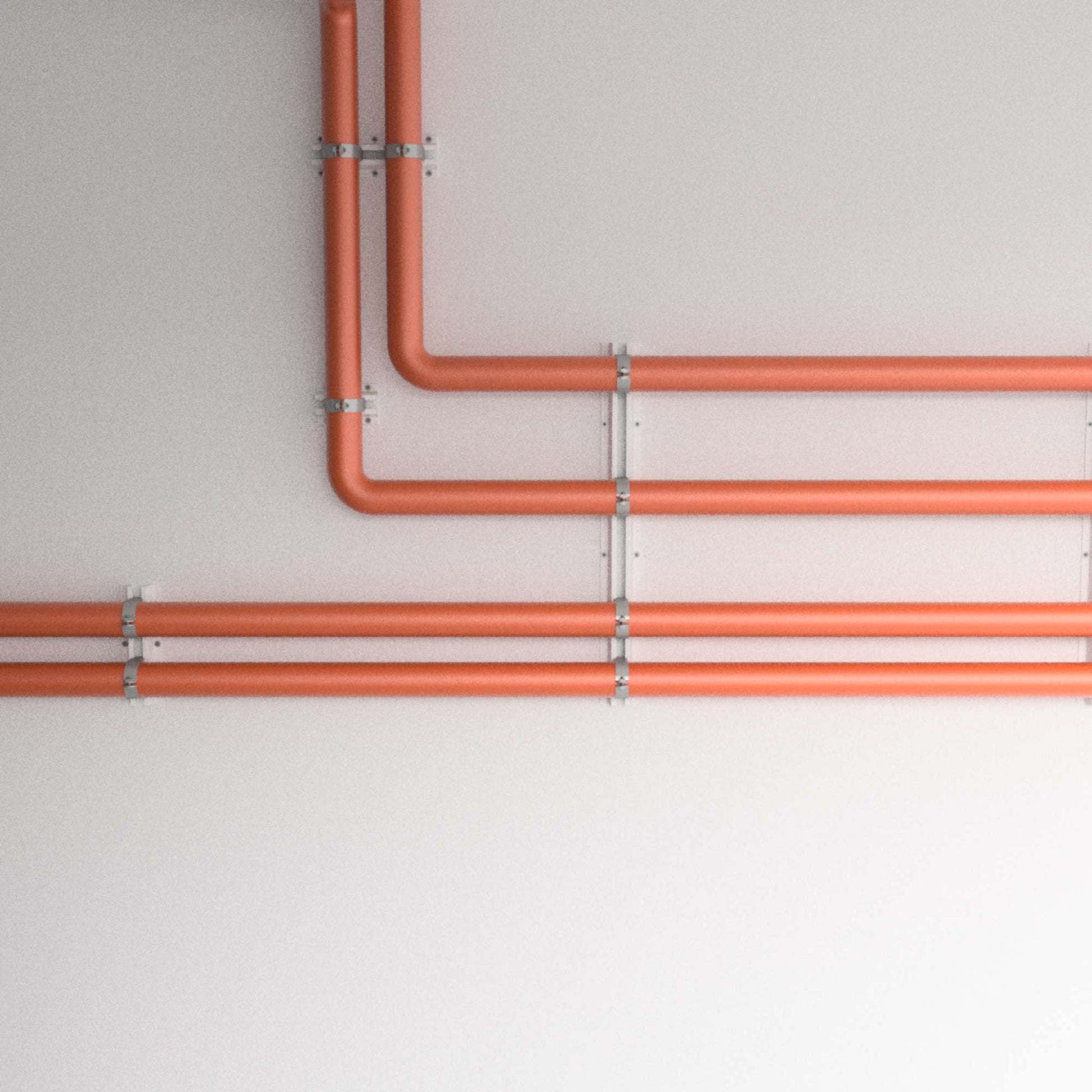

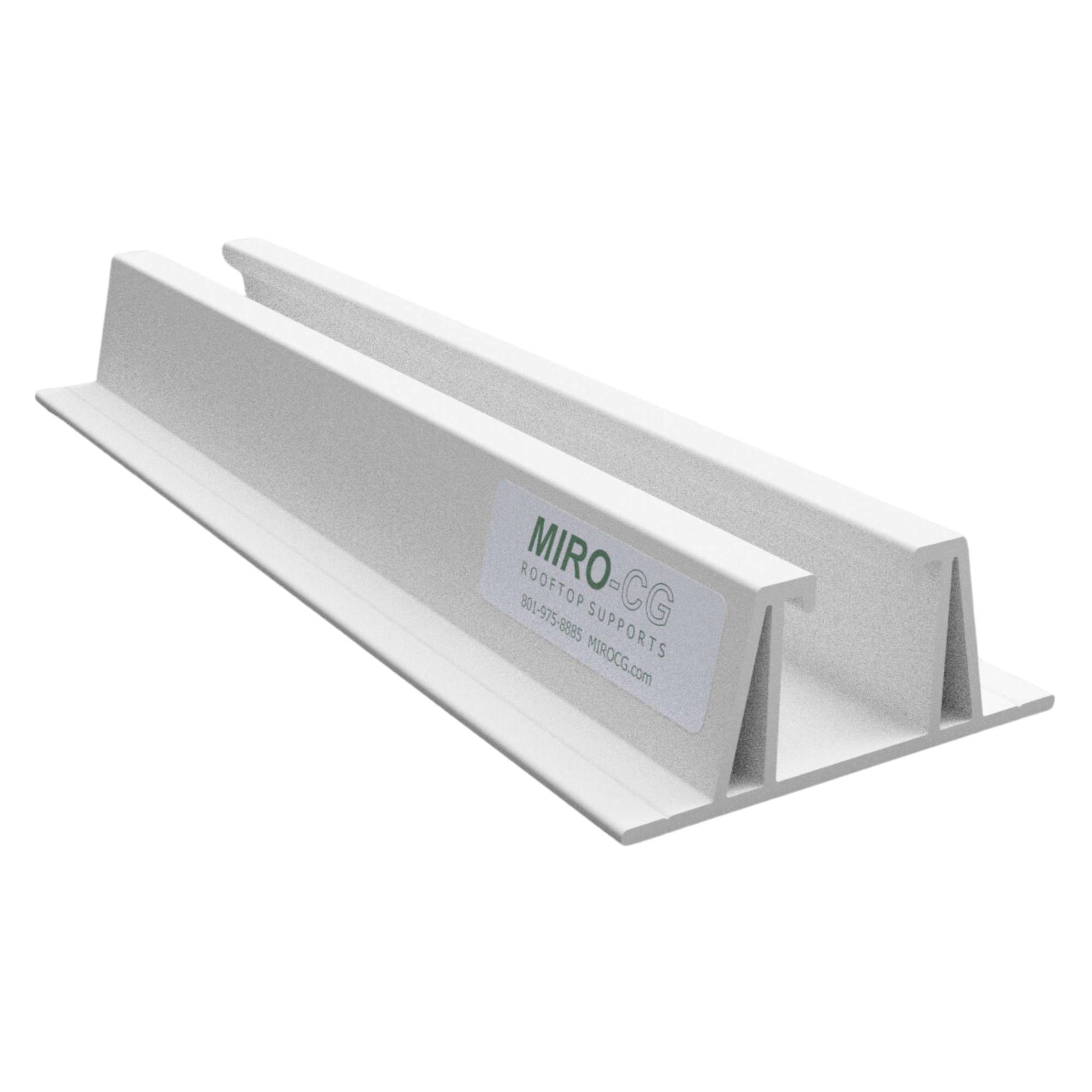

The VersaStrut is designed as a versatile strut profile with a flange base to be used in a variety of applications. The flange can be attached to a wall or ceiling to attach pipes vertically, or it can sit directly on a rooftop for a low-profile support to attach pipes horizontally. The strut profile can be used to attach clamps and fittings for conduit and other applications.

MATERIAL: PVC with 3% CPE (Chlorinated Polyethylene) for UV resistance and low-temperature performance.

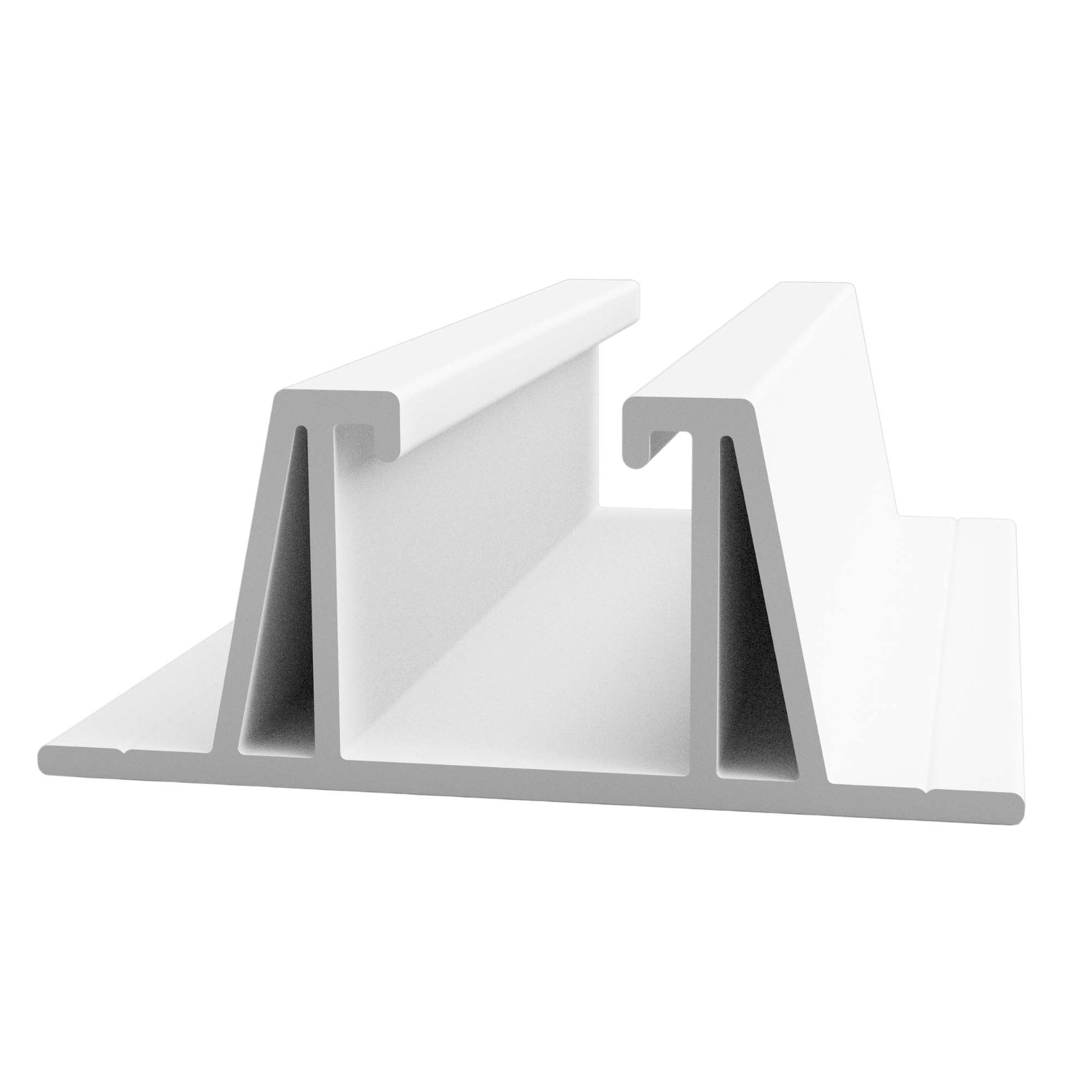

SIZE: 1-5/8" x 1-5/8" strut profile with a 4" flange base. Available in 6", 12", 36", and 10' lengths.

SUGGESTED LOADING:

  • Rooftop Application: Recommended max load to roof of 3.0 PSI, support not to exceed 144 lbs per foot of VersaStrut. Ultimate load of support not tested.
  • Wall Application: Recommended max load of 50 lbs per foot of VersaStrut.
  • Do not overtighten clamps, bolts, or screws applied to strut profile or flange base.

SPACING: Supports should not exceed 10' on center (or less depending on weight of pipe, or pipe manufacture recommendations).

WARRANTY: 2 year limited warranty.
