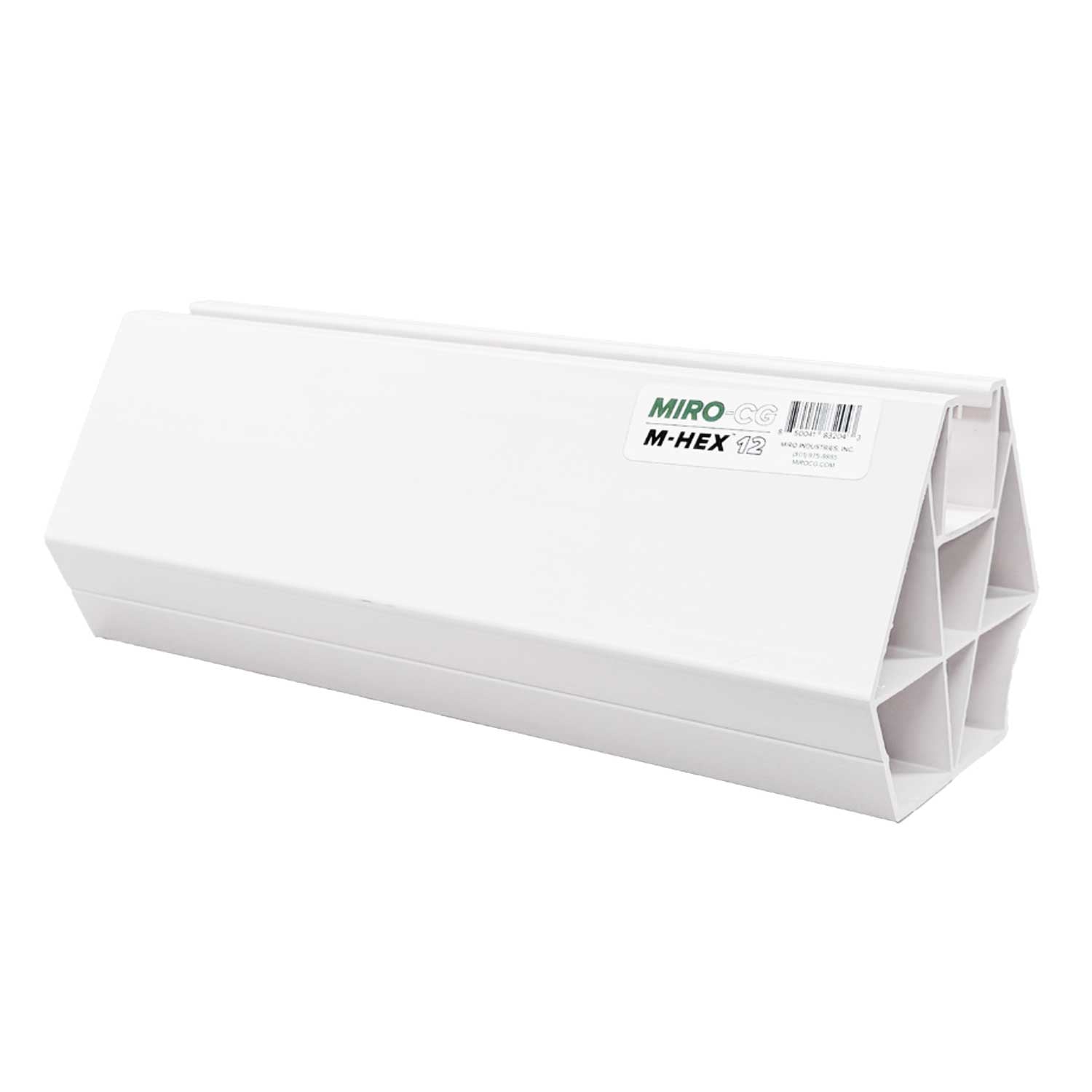

12" M-Hex Rooftop Pipe Support with Strut

The M-Hex rooftop pipe support is designed to support a variety of rooftop piping and conduit. The unique design provides 3 options for use: the strut side can be used to attach clamps & fittings for conduit & other applications, the pipe seat side can be used to place up to a 3” pipe directly on the pipe saddle, and the drill side allows attachment of other accessories.

MATERIAL: PVC

SIZE: 4.5” H, 5.2” W, 12" L

SUGGESTED ROOFTOP LOADING: 12”: 117 lbs at 3 PSI applied to surface. Max product load = 600 lbs.

SPACING: Supports should not exceed 10’ on center.

WARRANTY: 2 year limited warranty.

PRODUCT DETAIL SHEET (PDF)
