MIRO-CG Rooftop Supports
12x12 VersaBase — 1-5/8" Frame Assembly Kit
Couldn't load pickup availability

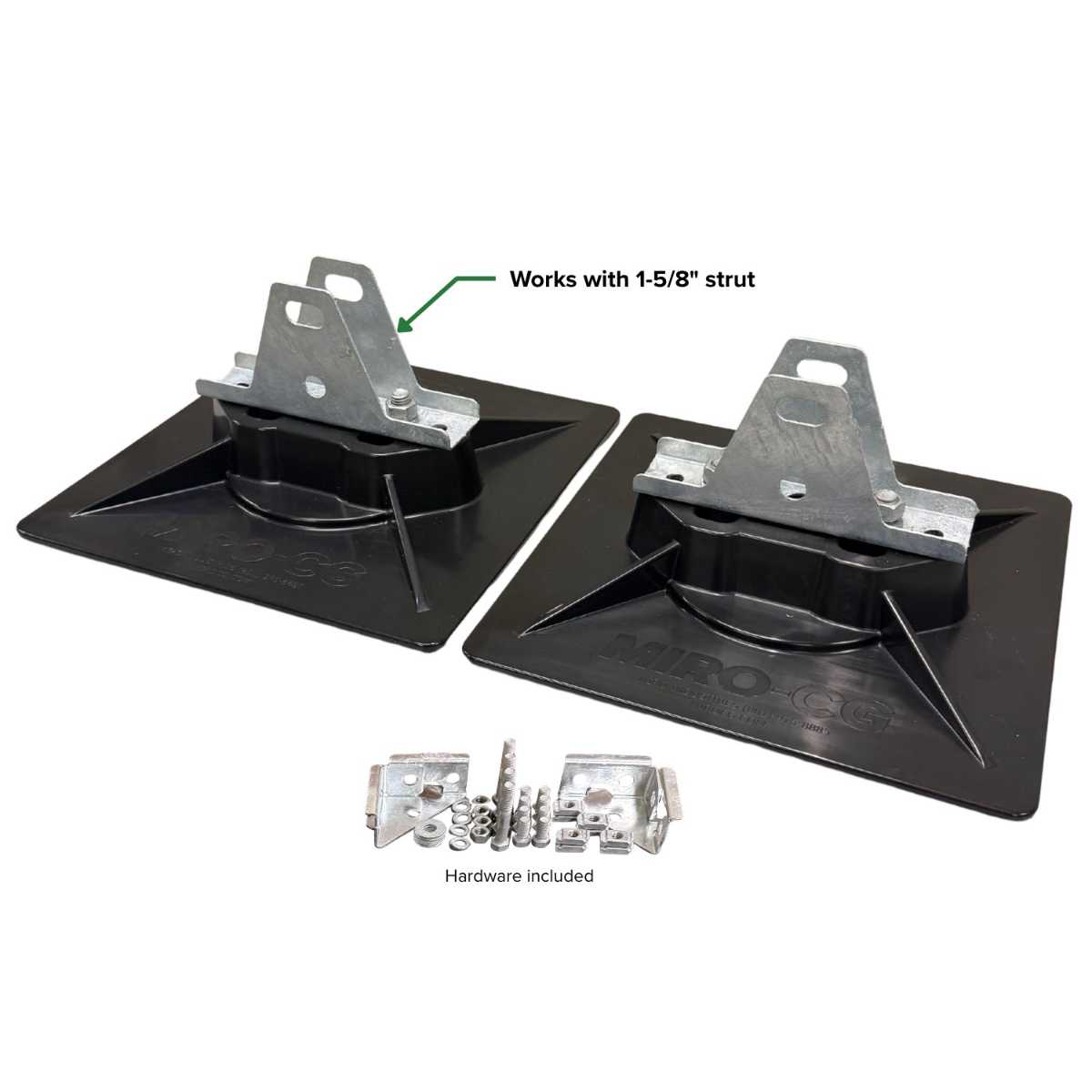

The MIRO-CG 12x12 VersaBase 1-5/8" Frame Assembly Kit delivers a complete two-base framing solution engineered for heavy-duty 1-5/8" strut runs. All components needed for a professional rooftop support frame are included in one kit.

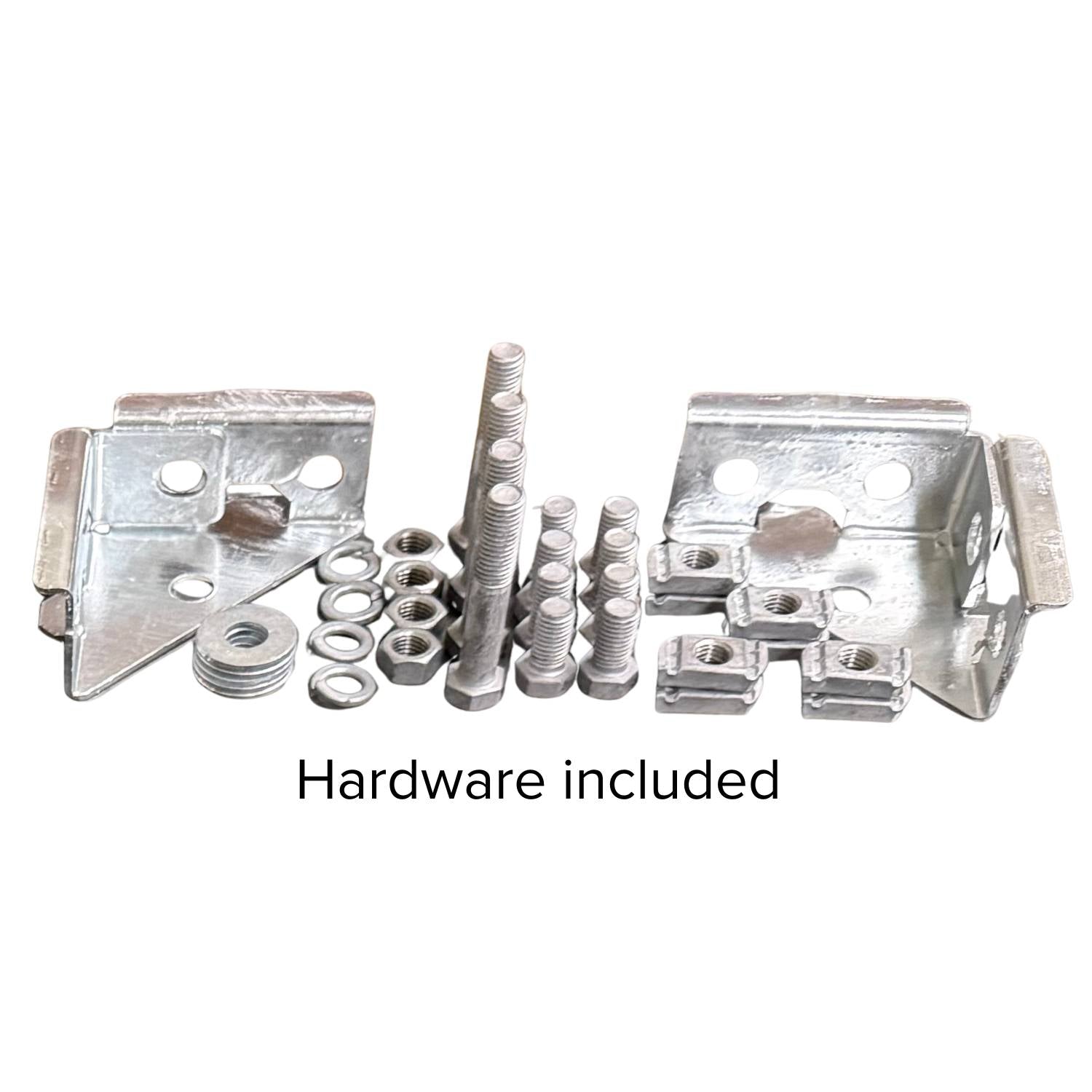

Kit Includes:
- (2) 12x12 VersaBases with strut bracket
- (2) corner brackets
- (8) strut nuts with bolts
Works With: 1-5/8" strut
Base Size: 12"L x 12"W x 2"H
Base Material: Acrylonitrile Styrene Acrylate (ASA)
Hardware Material: Galvanized or stainless steel
Weight: 9.5 lbs. per kit
Shipping: Ships as (1) kit in 12x9x12 box, DW = 9.5 lbs.
Warranty: 2-year limited warranty
Suggested Loading
| Load to Roof | Weight on Base |
|---|---|
| 2.0 PSI | 216 LBS |
| 3.0 PSI | 324 LBS |
| 5.0 PSI | 540 LBS |
Base size 12"Lx12"Wx2"H with surface area of 108 sq. in. Optimized system loading not to exceed 3.0 PSI (324 LBS per base). Ultimate load not tested. Contact MIRO Industries at 800-768-6978 for load calculations. Consult roofing manufacturer or engineer.
Optional accessory: 12x12 Fitted Rubber Pad (sold separately)
