12x12 VersaBase w/7/8" Strut Bracket

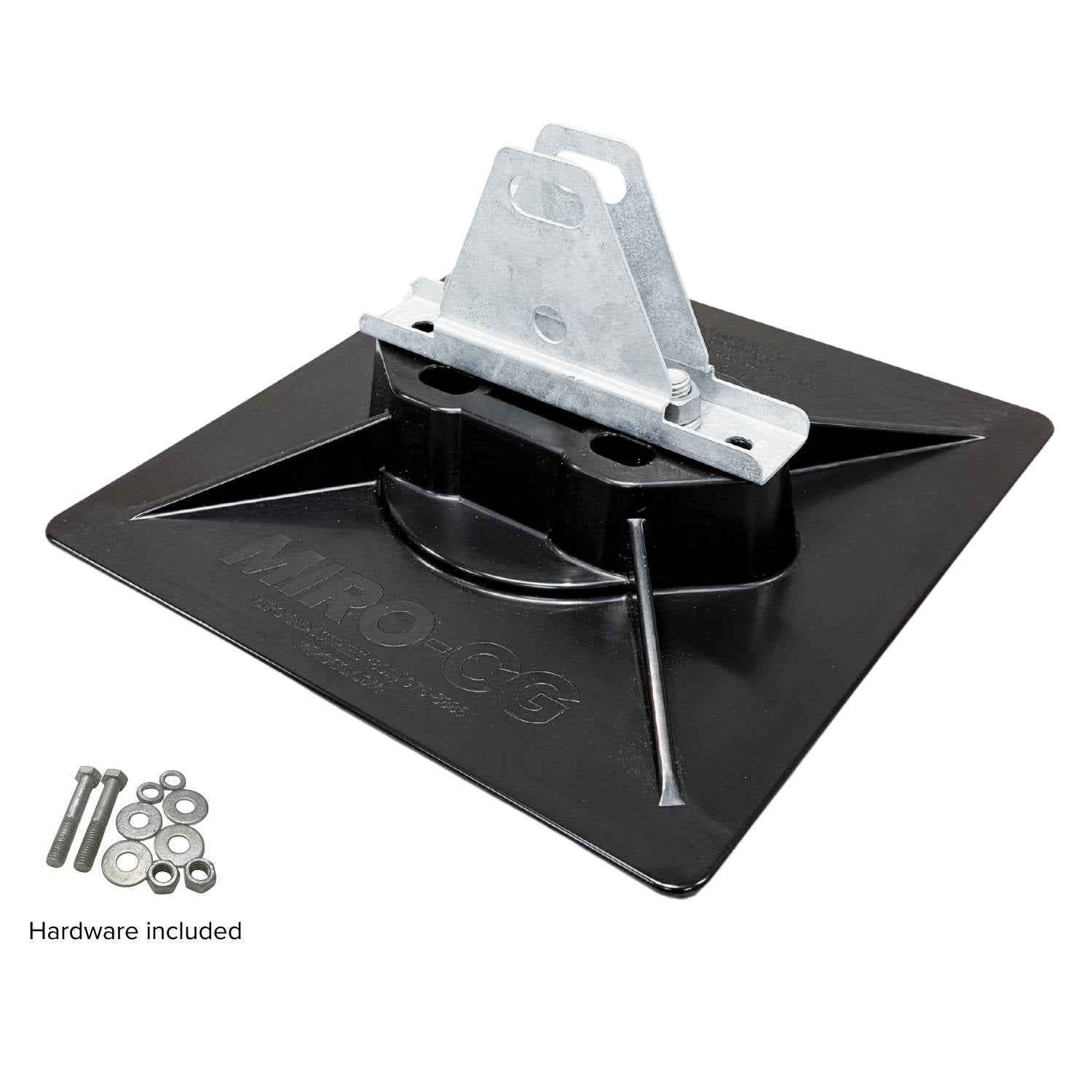

The MIRO-CG 12x12 VersaBase with 7/8" Strut Bracket combines a durable rooftop support base with an integrated vertical strut bracket — providing a ready-to-install solution for duct supports, pipe supports, and trapeze support applications.

Typical Applications:

• Duct supports
• Pipe supports
• Trapeze supports

Hardware Included: (2) 3" bolts, (2) 1/2" nuts, (2) lock washers, (2) flat washers

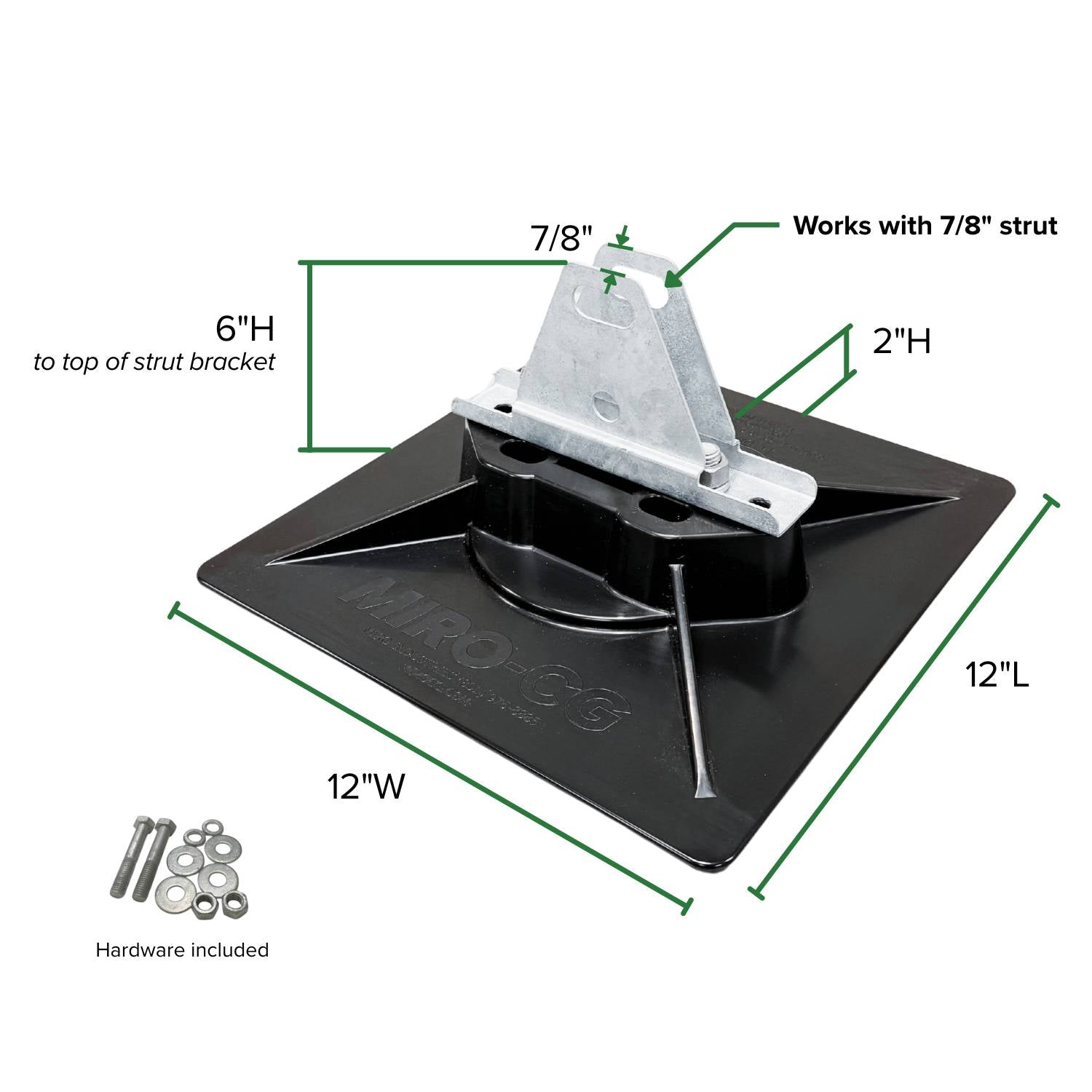

Size: 12"L x 12"W x 2"H base | 6"H to top of strut bracket
Bracket Compatible With: 7/8" x 1-5/8" strut
Material: Acrylonitrile Styrene Acrylate (ASA)
Warranty: 2-year limited warranty

Suggested Loading

Base size 12"Lx12"Wx2"H with surface area of 108 sq. in. Optimized system loading not to exceed 3.0 PSI (324 LBS per base). Ultimate load not tested. Contact MIRO Industries at 800-768-6978 for load calculations. Consult roofing manufacturer or engineer.

Optional accessory: 12x12 Fitted Rubber Pad (sold separately)

View Product Detail Sheet
