18" Stanchion Base

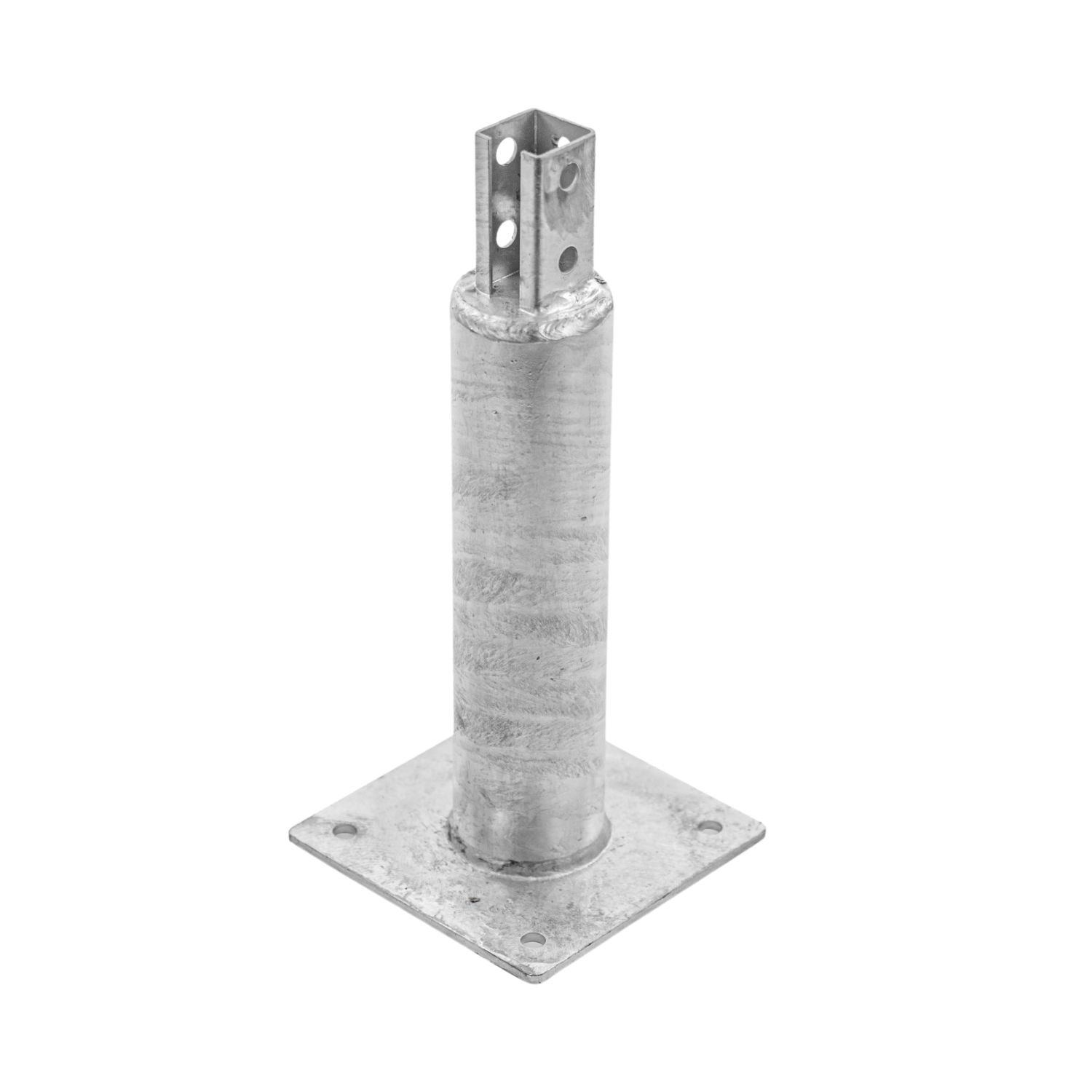

The MIRO-CG Stanchion Base is designed to attach typical 1-5/8" strut frame supports directly to the building structure. It's fabricated from a 3" nominal pipe welded to an 8"x8" base plate, with a cap plate and a 4" piece of telescoping strut for a secure, adjustable connection point.

Applications:

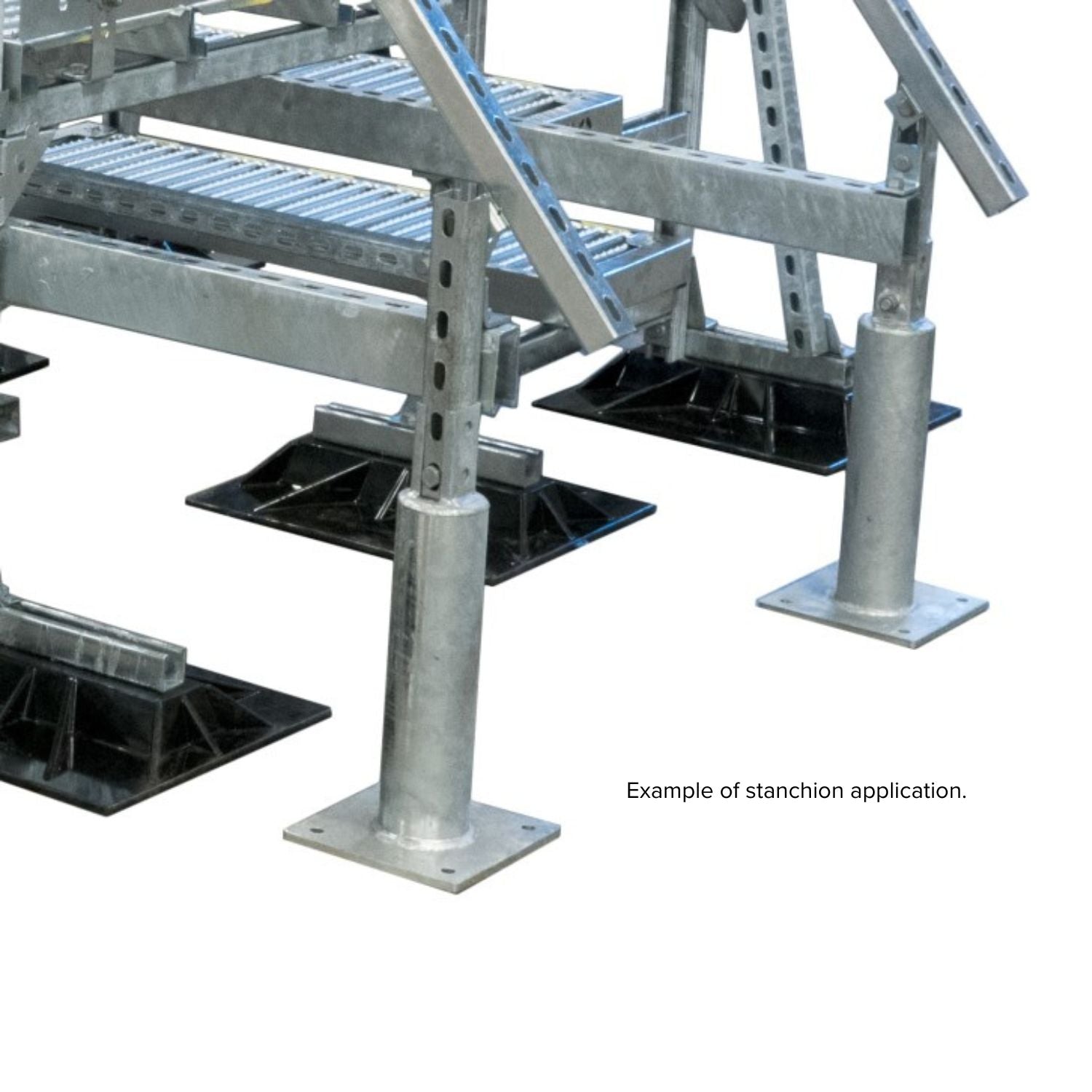

• Elevated support for pipe, duct, and rooftop equipment racks
• Attaches typical 1-5/8" strut frame assemblies to the roof or building structure
• Works with standard strut-mounted rooftop support systems

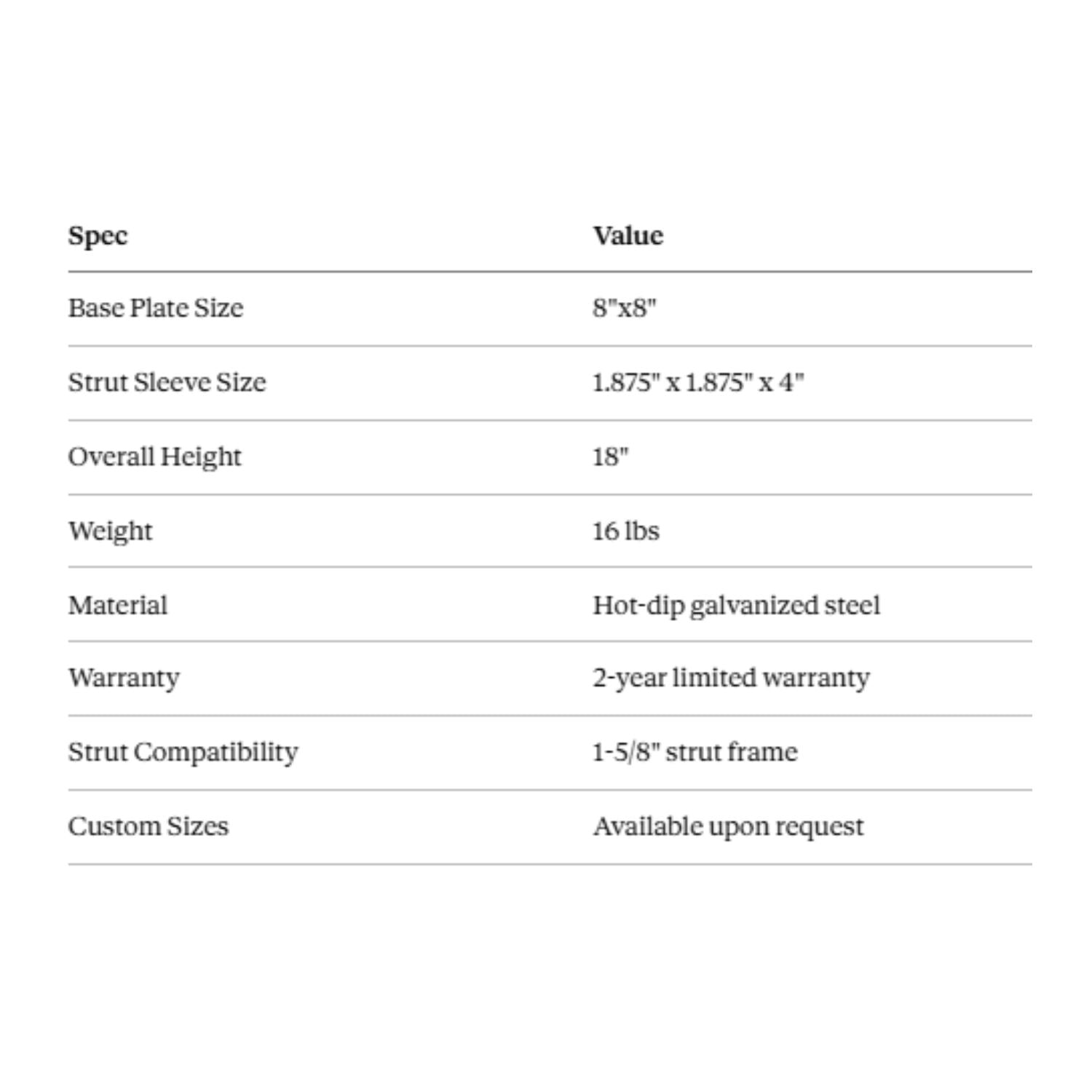

Size: 8"x8" base plate. 1.875" x 1.875" x 4" strut sleeve. 18" overall height.
Weight: 16 lbs
Material: Hot-dip galvanized steel
Warranty: 2-year limited warranty

View Product Detail Sheet (PDF)

Other heights available upon request. Contact MIRO Industries for custom stanchion sizing.

For custom sizing, load calculations, or bulk quotes, contact MIRO Industries at 801-975-8885.
