Rooftop Supports

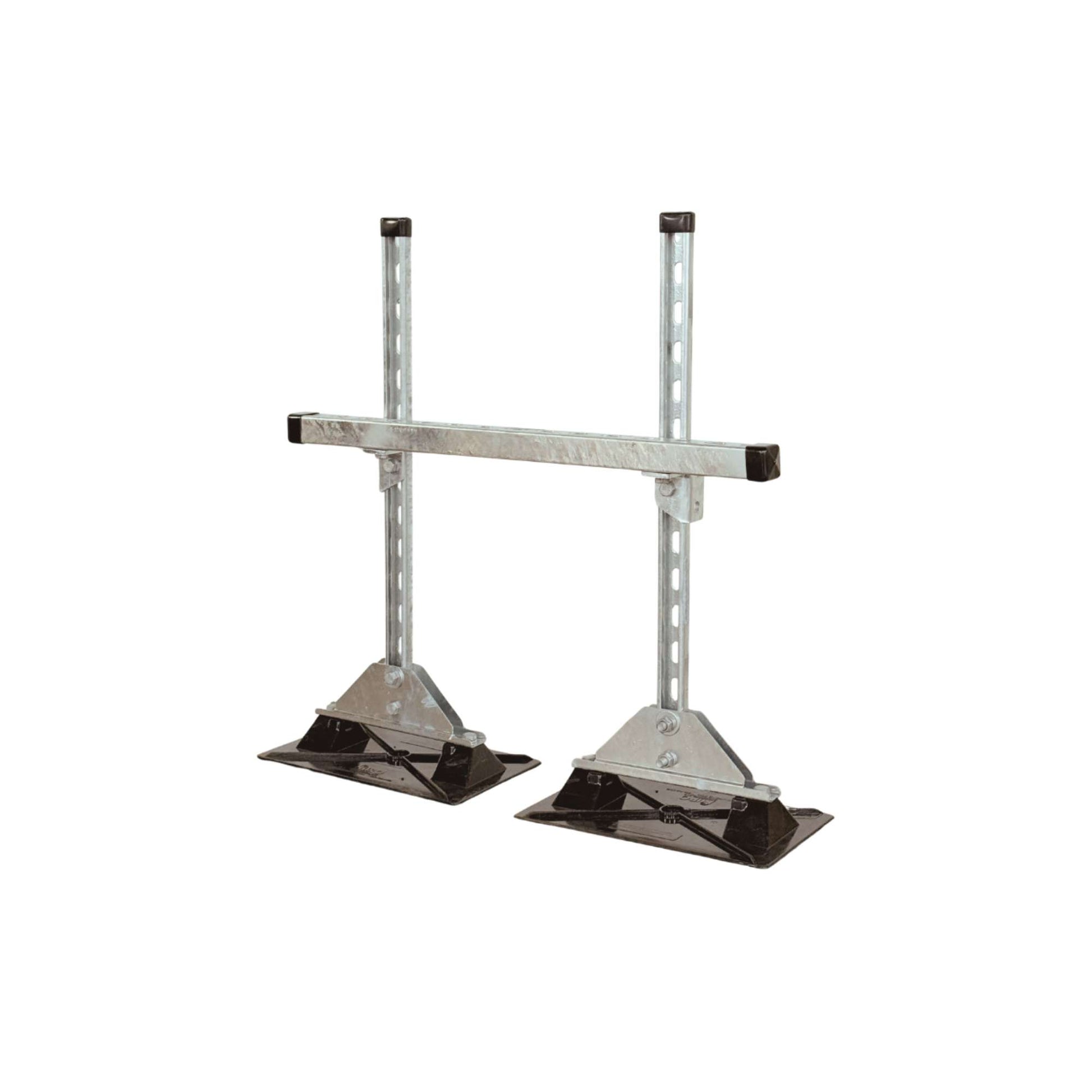

6-DSA Rooftop Duct Support

$274.54 USD
$274.54 USD
Sale Sold out
Shipping calculated at checkout.

A frame used to support duct or various utilities on flat roofs. Unique design allows a sturdy support without penterating or causing damage to the roof membrane. The 6-DSA model is manufactured with 12 gauge 1-5/8″ x 1-5/8″ slotted strut for maximum adjustability in length and height.

Key Information

  • Recommended spacing is not to exceed 8 foot centers
  • Frame is made with 12 ga. slotted strut
  • Base Material: Polycarbonate
  • All metal parts are galvanized.

Warranty Information: 2 year limited warranty

Recommended accessories: 9x15.25 rubber support pad, cross bracing

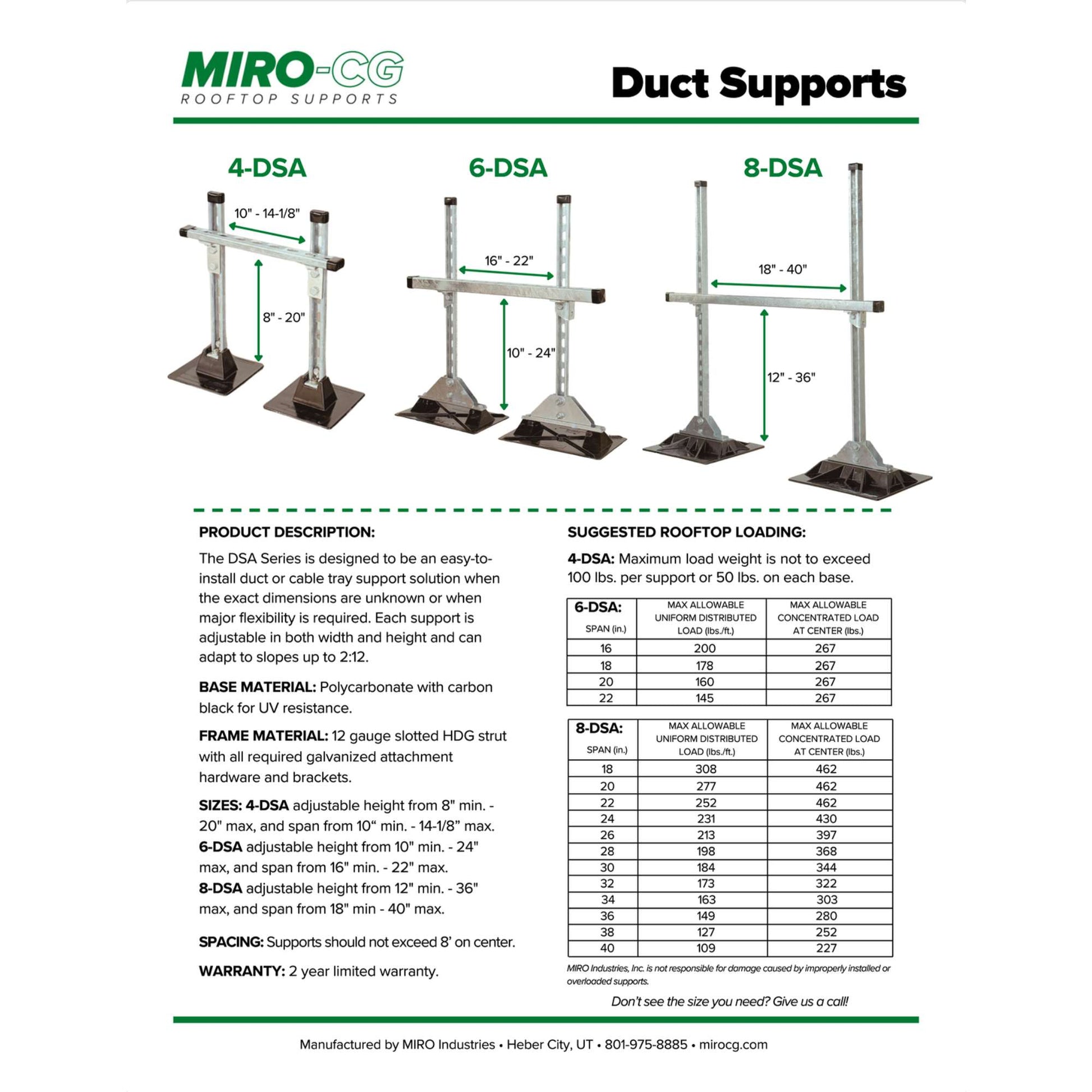

View Spec Sheet (pdf)

6-DSA Load Table

Span (in)  Max allowable uniform distributed load (lbs/ft) Max allowable concentrated load at center (lbs)
16 200 267
18 178 267
20 160 267
22 145 267
