6" M-Hex Rooftop Pipe Support with Strut
Couldn't load pickup availability

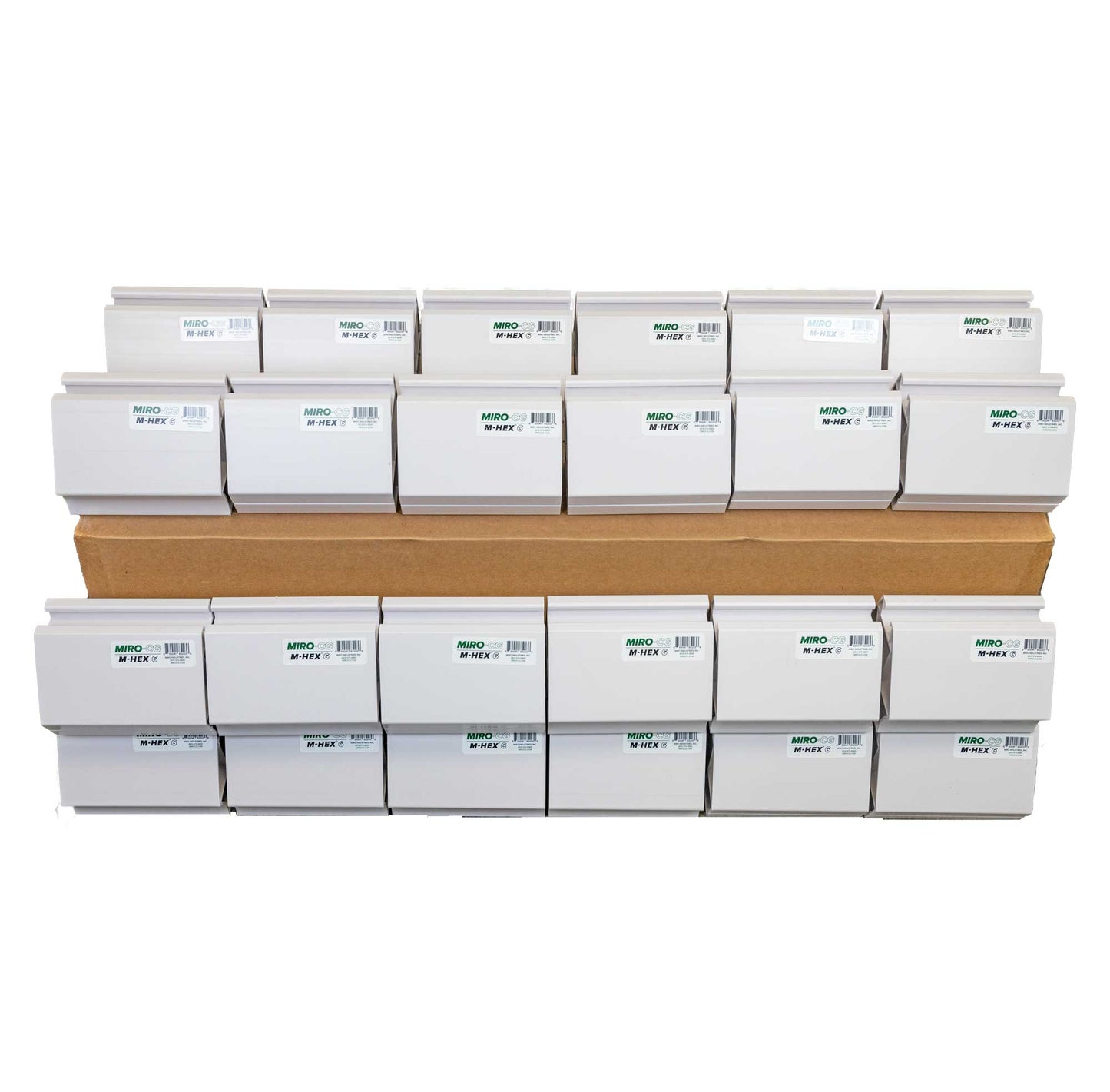

Case of (24) 6" supports.

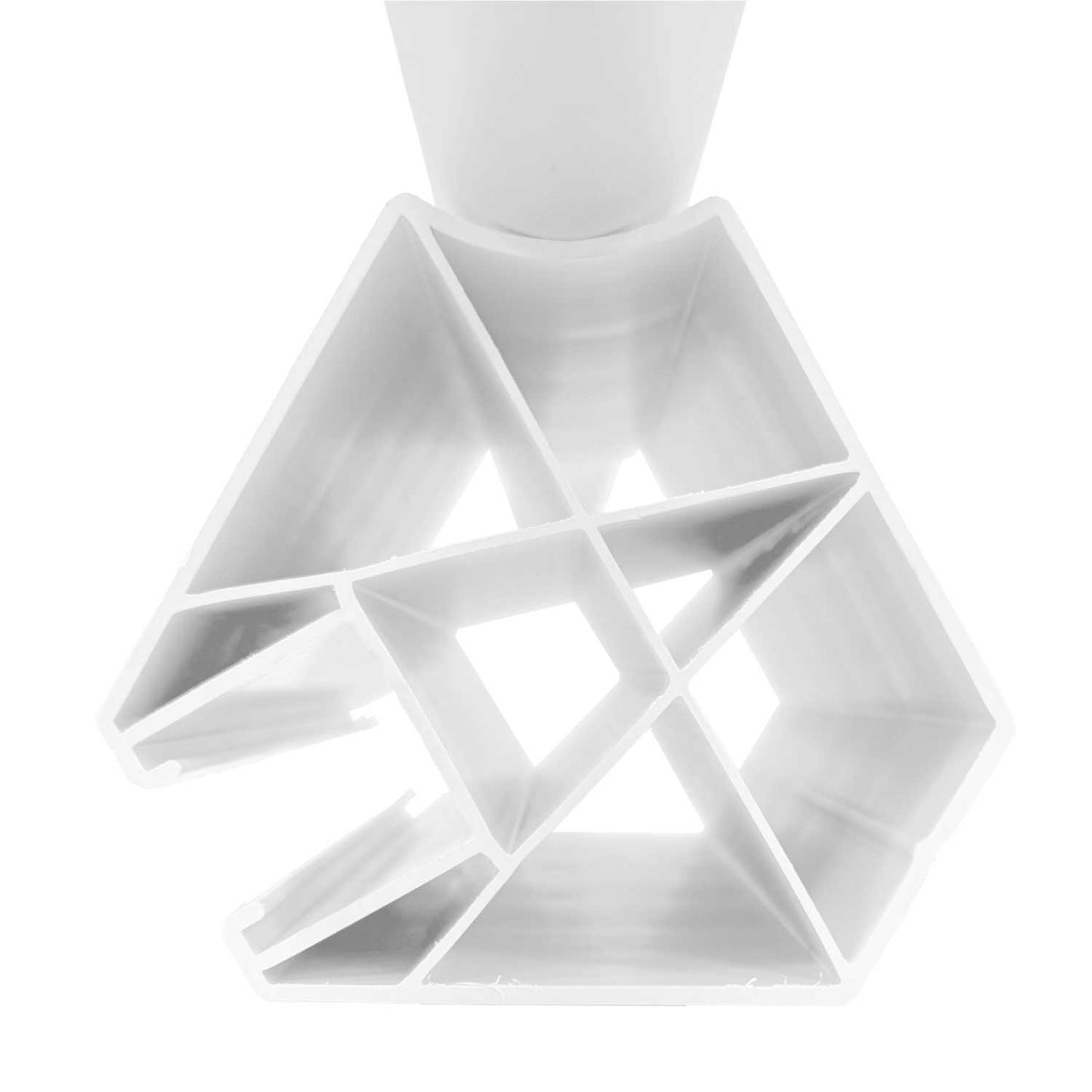

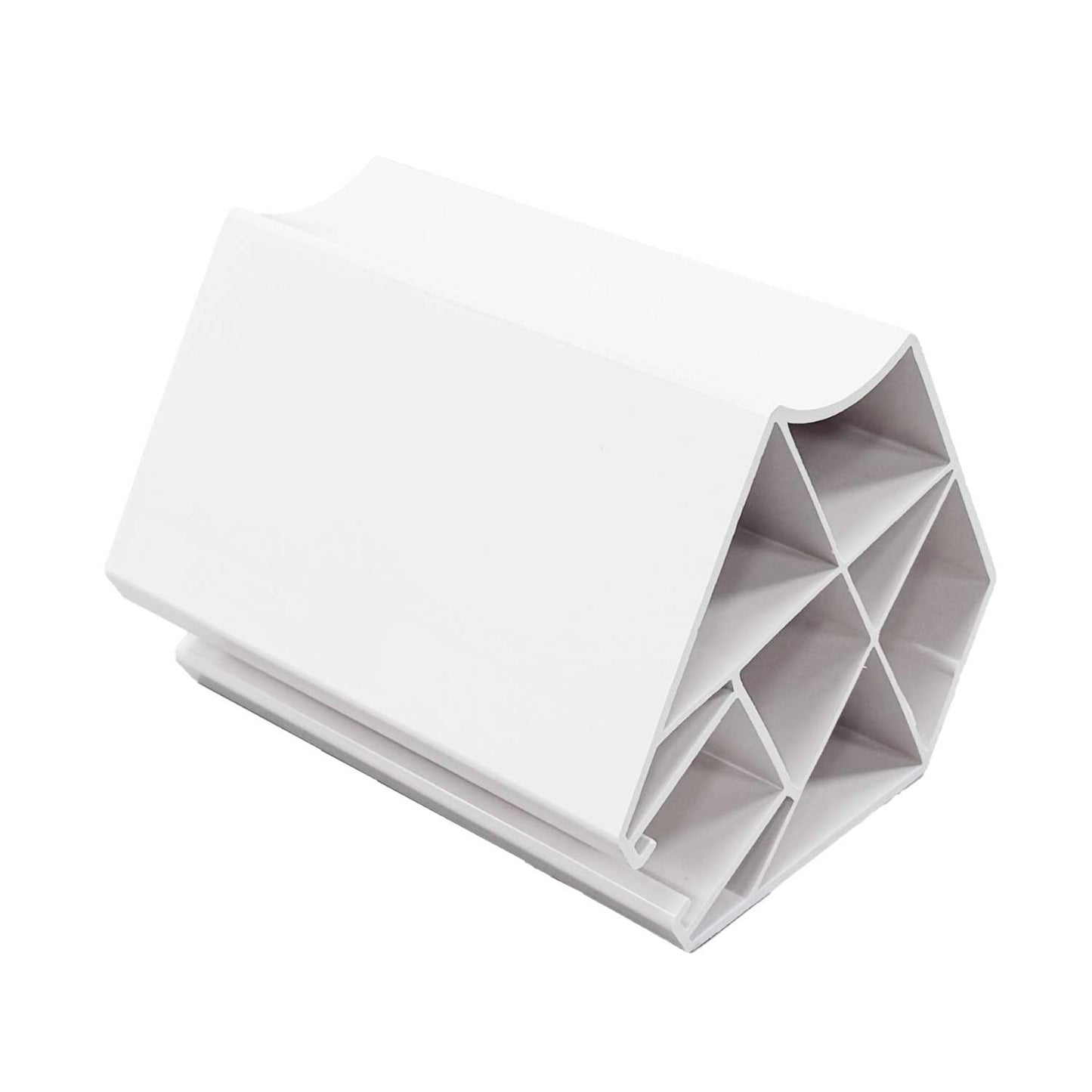

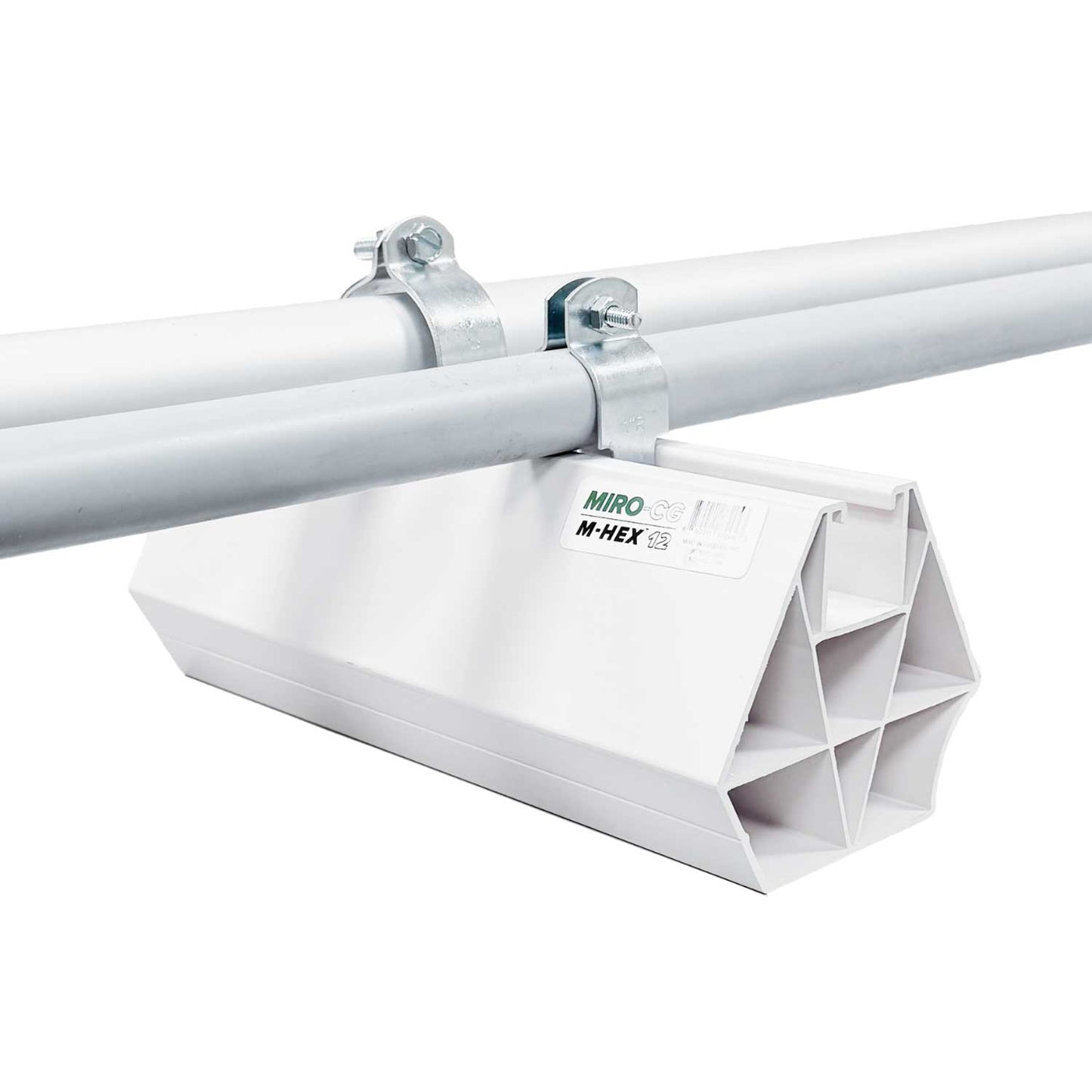

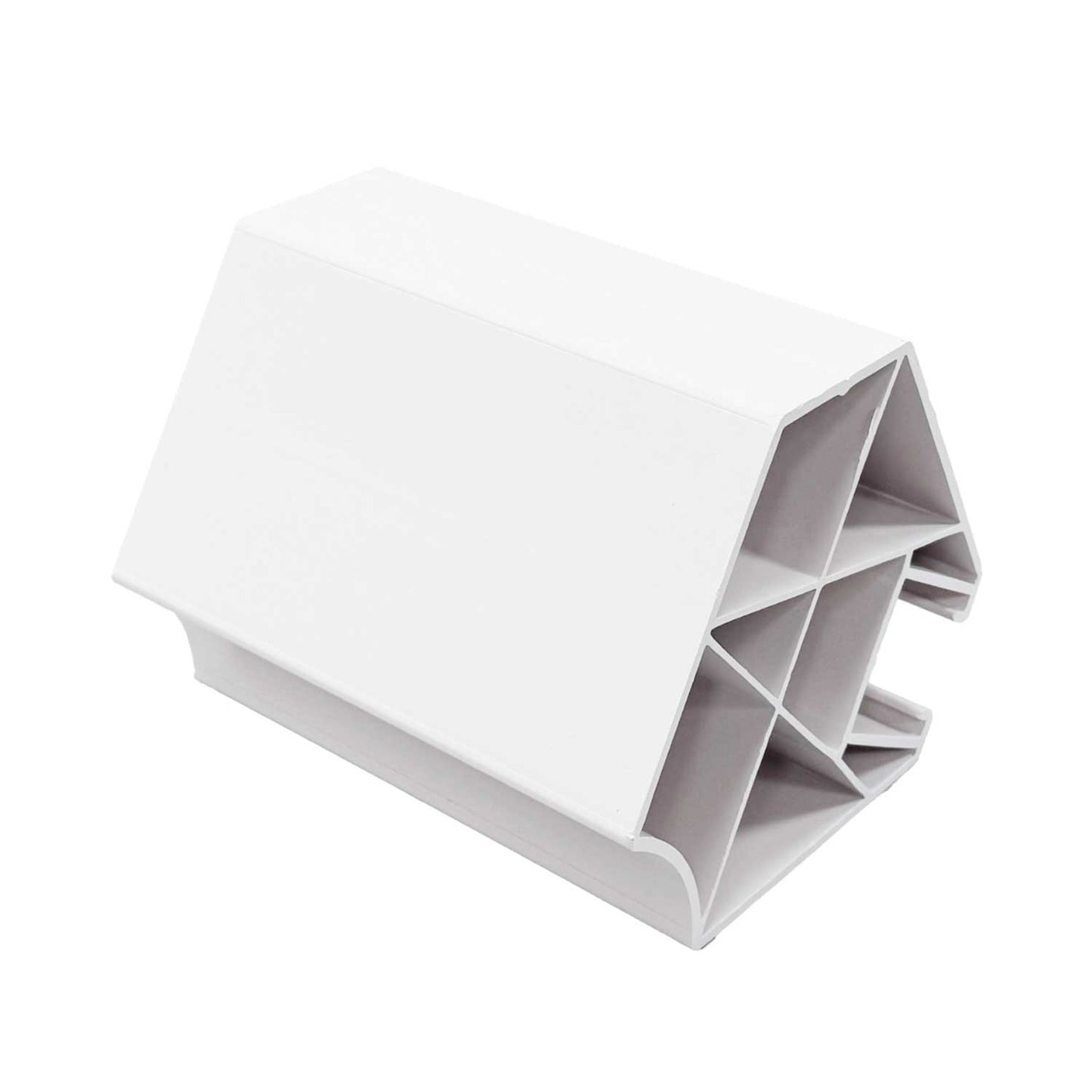

The M-Hex rooftop pipe support is designed to support a variety of rooftop piping and conduit. The unique design provides 3 options for use: the strut side can be used to attach clamps & fittings for conduit & other applications, the pipe seat side can be used to place up to a 3” pipe directly on the pipe saddle, and the drill side allows attachment of other accessories.
MATERIAL: PVC (Polyvinyl Chloride) with 3% CPE (Chlorinated Polyethylene) for improved impact resistance, outstanding low-temperature performance, and excellent weather resistance.
Chlorinated Polyethylene is known for its high resistance to chemicals, heat, and UV light. It is also flame retardant. It is used as a modifier for semi-rigid PVC to improve low temperature properties and increase weatherability.
SIZE: 4.5” H, 5.2” W | Available in 36”, 12”, or 6” length
SUGGESTED ROOFTOP LOADING: 6”: 58 lbs at 3 PSI applied to surface. Max product load = 300 lbs. 12”: 117 lbs at 3 PSI applied to surface. Max product load = 600 lbs. 36”: 351 lbs at 3 PSI applied to surface. Max product load = 800 lbs. SPACING: Supports should not exceed 10’ on center.
WARRANTY: 2 year limited warranty.
