MIRO-CG

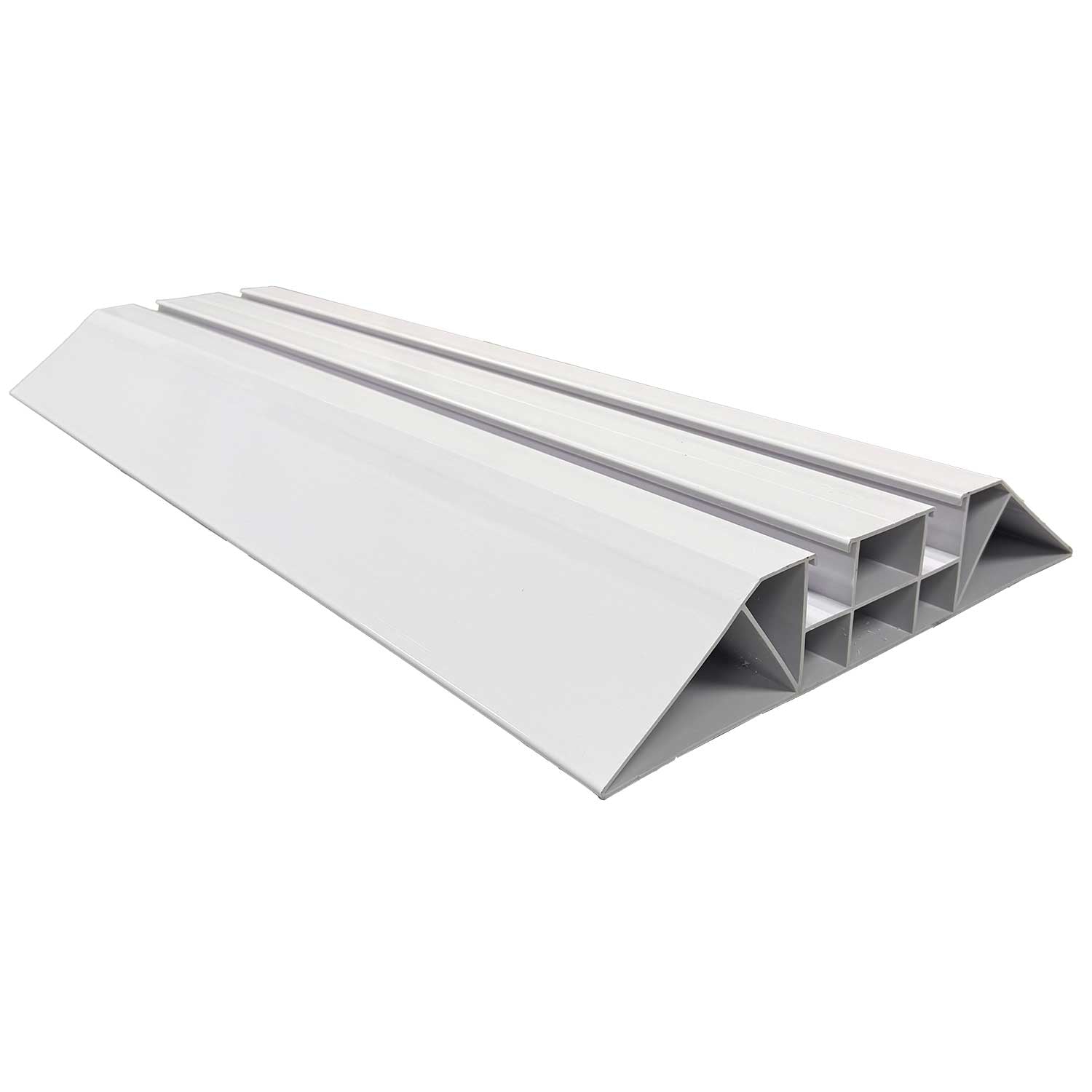

M-Channel Base — 36 in. Dual-Strut Rooftop Support (Base-Only)

$61.79 USD
$61.79 USD
Sale Sold out
Shipping calculated at checkout.

Description

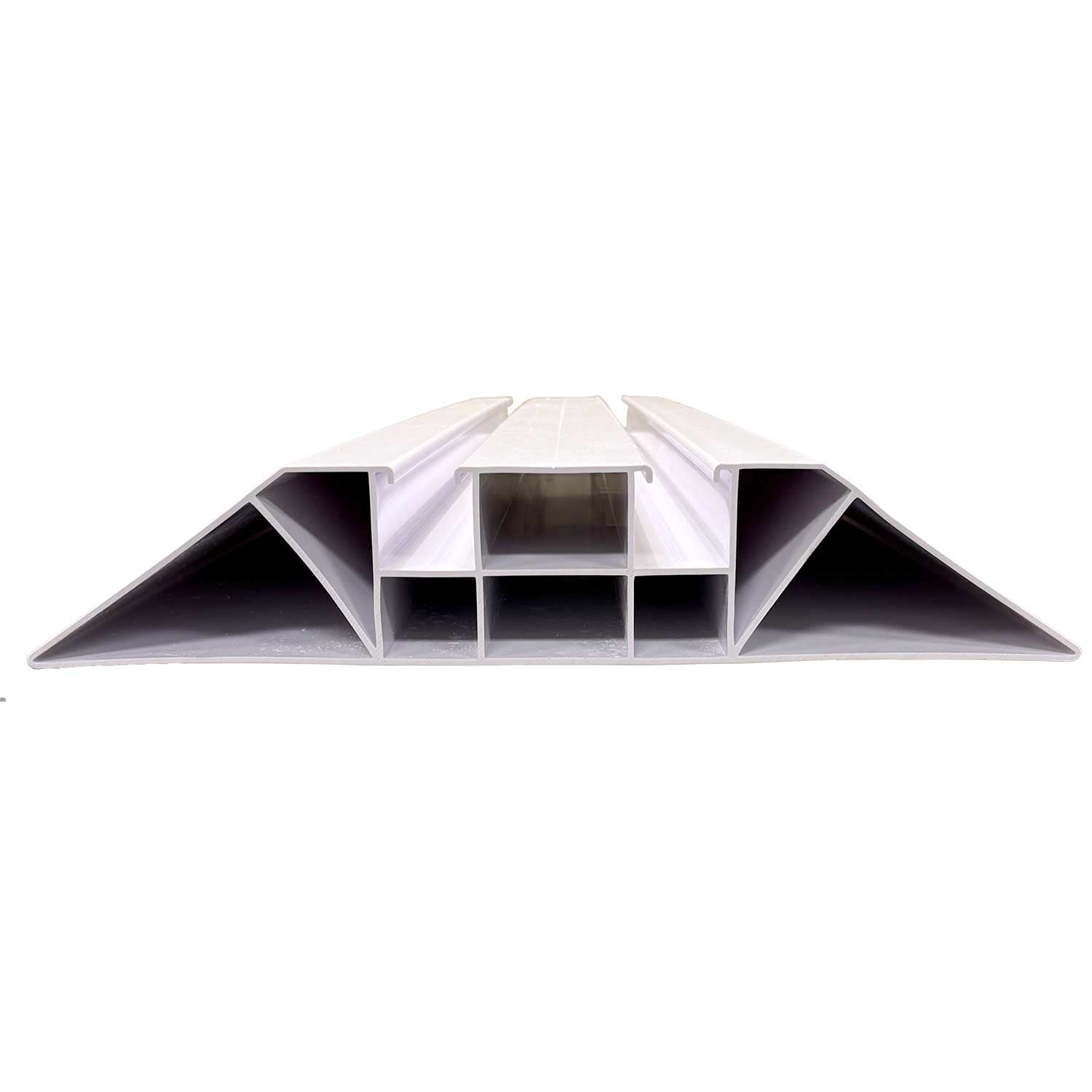

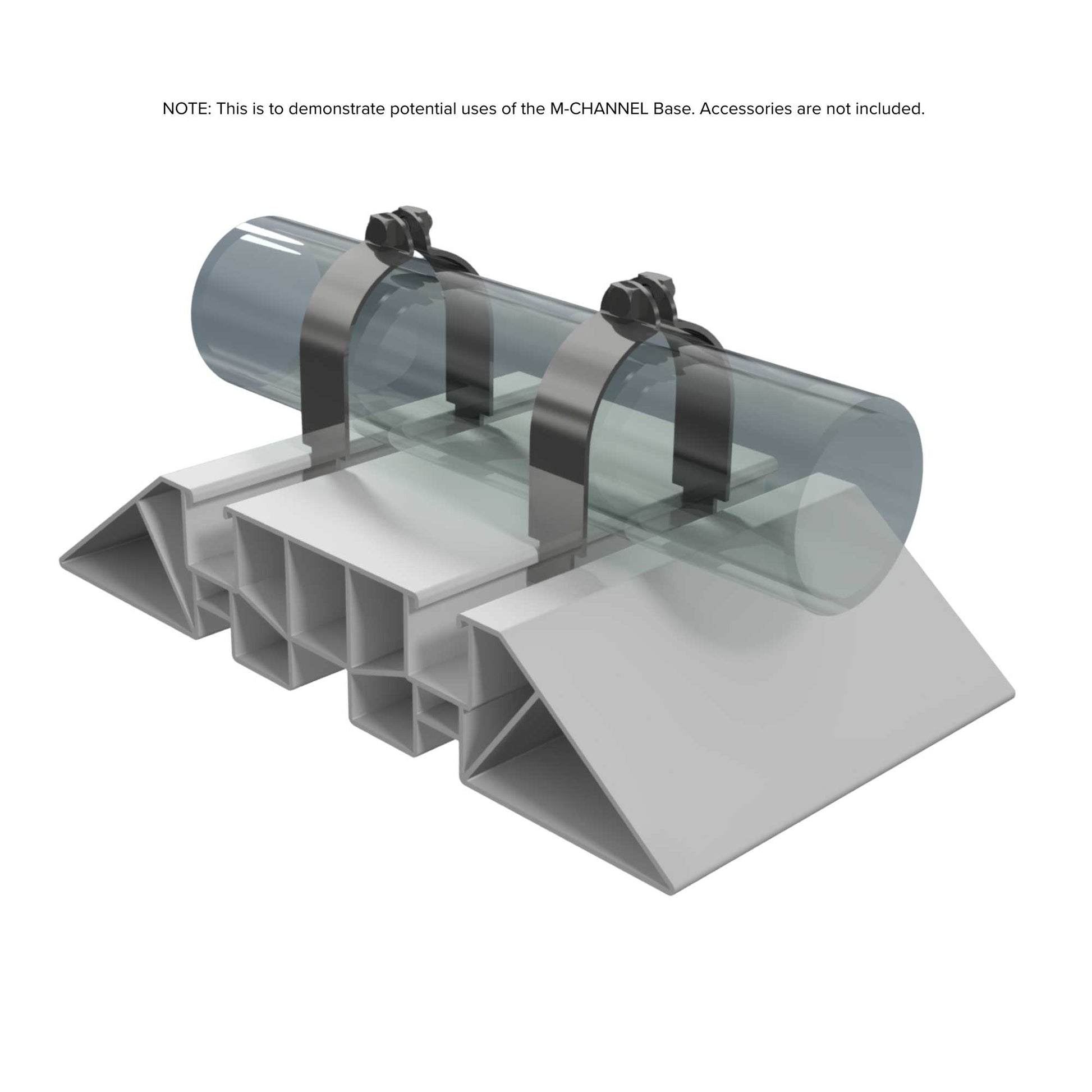

Upgrade any flat-roof project with the MIRO-CG M-Channel Base—the quick, no-penetration foundation that lets you build custom walkways, pipe racks, or equipment supports in minutes. Each 36-inch base comes pre-molded with dual 1-5/8″ × 1-5/8″ strut channels, so you can drop in standard strut hardware, bolt down grating, or fasten piping without welding or drilling. Made from UV-stabilized PVC with 3% CPE, the M-Channel can handle sun, snow, and chemical exposure while spreading loads safely across the roof membrane. Simply cut to length desired, set the bases no more than 10 ft on-center, and you’re ready to roll.

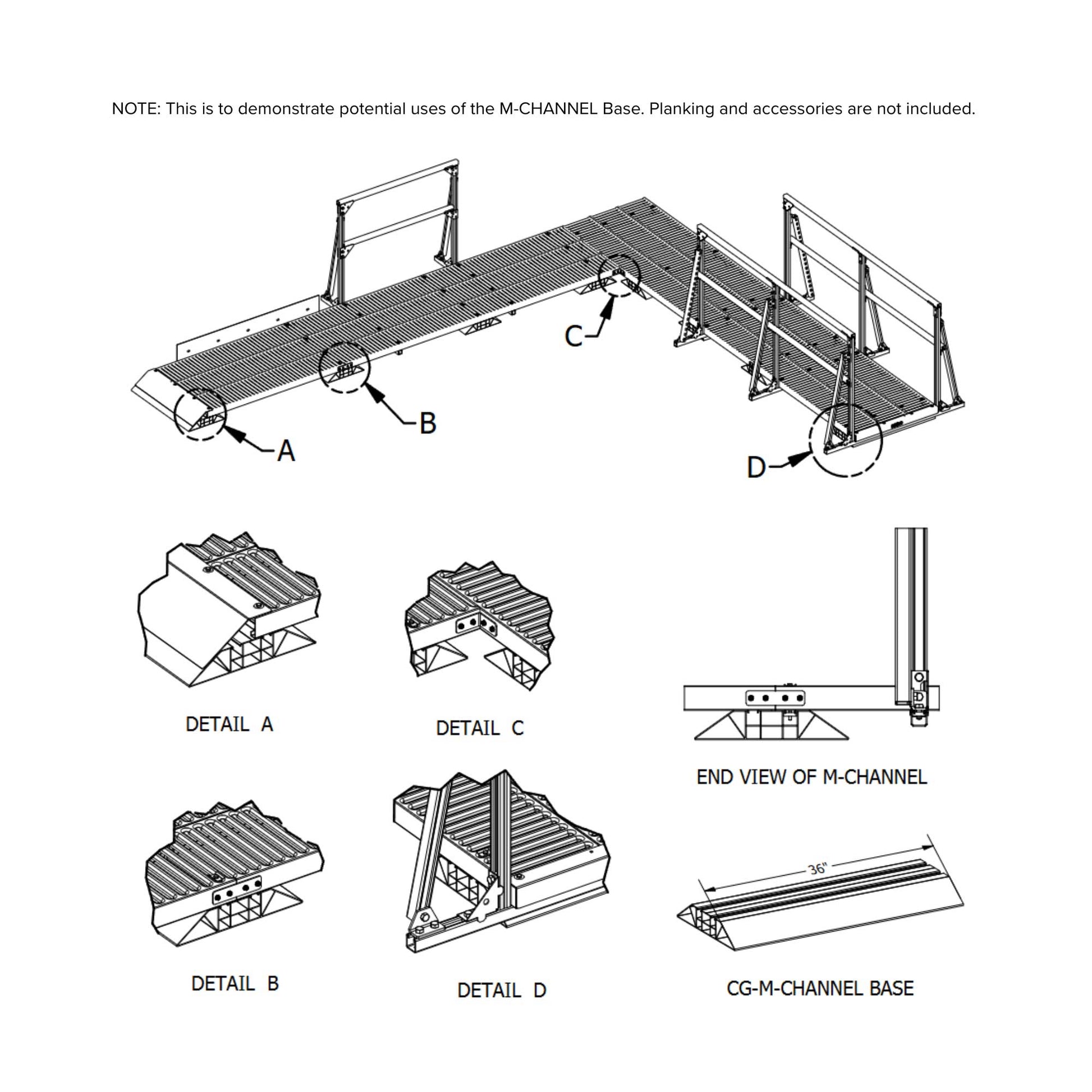

Please note: This listing is for the base only. Planking, handrails, and 20 × 40 in. support pads are sold separately. Perfect for DIY walkway kits, light gas-line runs, or any project that needs a low-profile support.

Key Features

  • Plug-and-Play Dual Strut: Accepts off-the-shelf 1-5/8″ strut nuts and fittings for endless configurability.

  • Lightweight & Cut-to-Fit: Weighs just 12 lbs; slice to custom lengths with basic shop tools.

  • Roof-Friendly Footprint: Distributes up to 1,200 lb per base (3.0 psi)—no penetrations needed.

  • Weather-Tough PVC-CPE Blend: Formulated for UV resistance and cold-weather flexibility.

  • Compact Shipping: Ships two bases per carton (36 × 16 × 7 in., 27 lb) for parcel-friendly freight.

  • 2-Year Limited Warranty for peace of mind.


▶ Download the Product Detail Sheet



Technical Specifications

Attribute Value
Length 36 in. (914 mm)
Width (footprint) 15 ¾ in. (400 mm
Profile Dual 1-5/8″ × 1-5/8″ strut
Material PVC + 3 % CPE
Weight 12.15 lb (5.5 kg) each
Max Rooftop Load 1,200 lb per base @ 3.0 psi
Recommended Spacing ≤ 10 ft (3 m) on-center
Warranty 2 years limited


What’s Included

  • (1) MIRO-CG M-Channel Base, 36 in.
    (Hardware, planking, pads, and handrail components sold separately.)




Compatible Accessories (Sold Separately)

  • 20 × 40 in. Support Pad – spreads load on softer surfaces.

  • Aluminum or FRP Grating – create non-skid walk paths.

  • Handrail Posts – bolt into channel for code-required fall-protection.

Shipping & Handling

  • Ships from: Heber City, UT, or Suwanee, GA

  • Carton: 36 in. L × 16 in. W × 7 in. H

  • Orders leave our warehouse in 1-2 business days.

Installation Snapshot

  1. Layout bases ≤ 10 ft apart.

  2. Cut to length if needed.

  3. Insert strut hardware & attach planking or pipe straps.

  4. Add optional support pads under each base on softer roofing membranes.
